• Easy to fix and maintenance free.
• Compatible with all fibre cement slates, natural slates and interlocking plain tiles.
• Also compatible with many other plain tiles and concrete interlocking tiles.
• Secures tiles to the roof, preventing wind uplift problems.
• Mortar-free solution allows fixing in all weather conditions.
• Long term UV resistance prevents discolouring from exposure to sunlight.
• Prevents entry of birds and large insects.
• Suitable for new build or refurbishment situations on roofs of 15° to 55° pitch.
• Wind Tunnel Tested to comply with BS 5534 requirements for mechanical fixing.

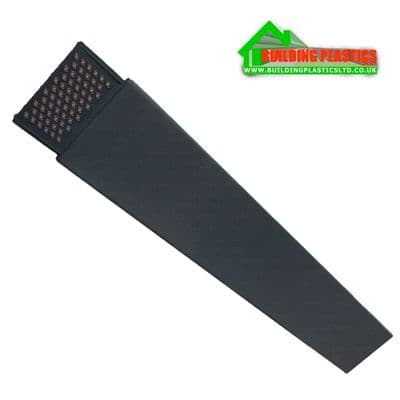

Each Linear Verge Unit should be fixed using aluminium or stainless steel, 3.35mm shank diameter spiral roll or annular shank nails, 38mm in length (these are not provided).

The Linear Verge Units should be used in conjunction with an additional 25mm x 38mm batten strip securely fixed along the verge of the roof. Alternatively, they can be fixed directly onto the ends of the tiling battens if these are in good condition (may require sawing each Linear Verge Unit to align with batten ends).

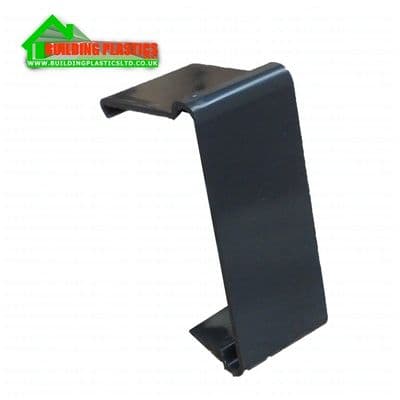

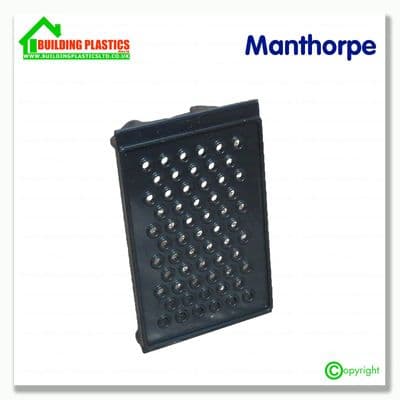

At the eaves, the initial Verge Unit should be secured using an additional Fixing Clip ( Product Code: MAN-GDV-FC). For roofs where the bottom course tiles are tilted upwards, a joint can be made with an additional Verge Union (Product Code: MAN-GDV-VU).

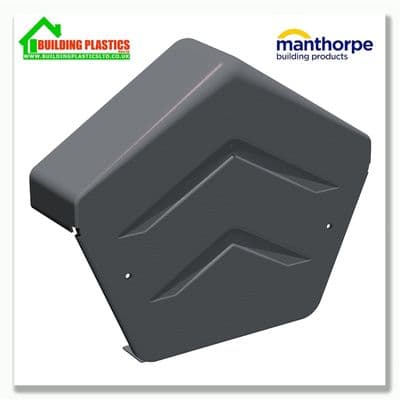

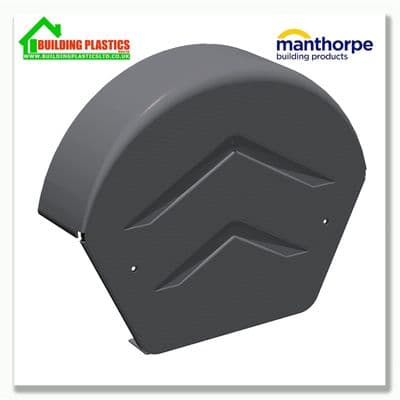

At the ridge, the Angled or Round Ridge End Cap (Product Code: MAN-GDV-END-A or MAN-GDV-END-R) should be used to prevent the ingress of birds and large insects
